液体池

我们选择的液体池为生物研究人员所研究的需要测量浸入环境控制的液体环境中的样品提供了广泛的选择。

Universal Liquid Cell

Our universal liquid cell offers maximum flexibility and power for biological researchers. It can function as both an open and closed liquid cell, always maintaining temperature control. Featuring three outlets for liquid or gas and reference and counter electrodes, it accommodates various configurations, including open/closed cells with heating/cooling and electrochemistry setups. Ideal for shared labs or researchers needing versatile features.

Universal Liquid Cell

Specifications

  • Open or closed cell with liquid/gas perfusion
  • Temperature control stage: 0 °C - 110 °C (in air), 4 °C - 70 °C (with liquid)
  • Chemically resistant to acid/base
  • Sample size: max. 15 mm in diameter / 1.5 mm in thickness
  • Electrochemistry upgrade (optionally available)
  • Applicable sample bias voltage: -10V to +10V

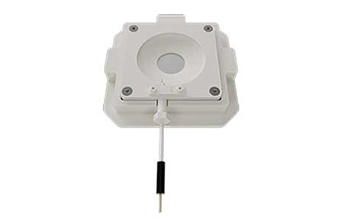

Electrochemistry Cell

This cell is ideal for biological researchers that need to take electrochemical measurements. It features corrosion resistant PEEK material so that it can hold up, even under heavy use.

Electrochemistry Cell

Specifications

  • Material: PEEK, resistant against corrosive solutions
  • Number of electrodes: 4 electrodes
  • Applicable bias voltage: -10 V to +10 V
  • Sample size: 12 to 38 mm / 5 mm thickness

Open Liquid Cell

Our open liquid cell is the ideal choice for those conducting research in an open environment.

Open Liquid Cell

Specifications

  • Material: PCTFE, resistant against corrosive solution
  • Capacity of liquid: 2.3 cm3
  • Sample size: 14 mm in diameter, or 20 mm × 35 mm
    / 4.5 mm thickness
