Polyvinylidene fluoride (PVDF)
Polymers

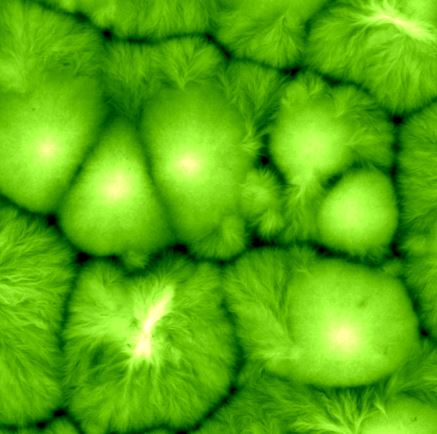

The surface of PVDF beads dissolved by chloroform was imaged in True Non-contact mode. The scan image reveals nanoscale surface features with a peak-to-valley height of about 238.7 nm.
Scanning Conditions
- System: NX7
- Scan Mode: True Non-contact™ mode
- Scan Rate: 1 Hz
- Scan Size: 10 µm × 10 µm
- Pixel Size: 512 × 512 pixels
- Peak-to-valley: 238.7 nm
