Name: TPC-060
Brand: Park Systems
Availability: InStoreOnly

Nano Standard Samples

Tip Positioning Checker (TPC-060)

The tip positioning checker, TPC-060 is a reference material with optically visible square patterns to align the tip to the measurement positions from the optical images of the tip.

Manufactured by Kims Reference Corp. (internationally accredited reference materials producer from ILAC-MRA and KOLAS via ISO-17034)

Quotation

Specifications

Pitch values: 10 μm, 20 μm, 50 μm, 100 μm, 200 μm, 300 μm
Step height: 60 nm
Chip size: 5 mm × 5 mm
Each pattern size: 1 mm × 1 mm
Material: Si₃N₄ on Si
Substrate: Circular coupon (Ф 20 mm)
Traceability: Not certified

Applications

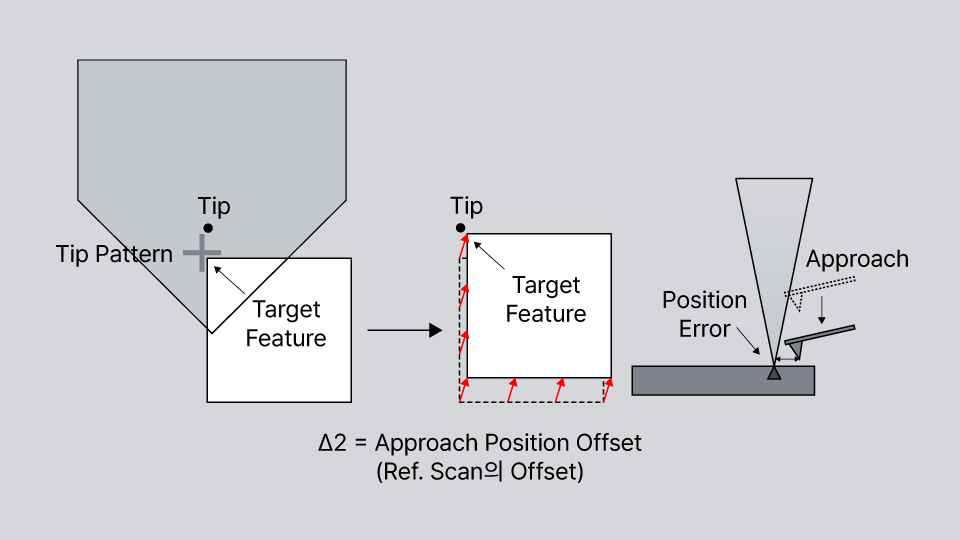

Since the AFM tip is located on the opposite side of the cantilever and is not visible in the AFM vision, the actual tip position should be matched with the target position of the cantilever pattern prior to the practical AFM measurement.

Tip position matching is performed by calibration of the offset values of XY scanner. The tip position error can be evaluated from the measurement of the square pattern in the TPC-060.
